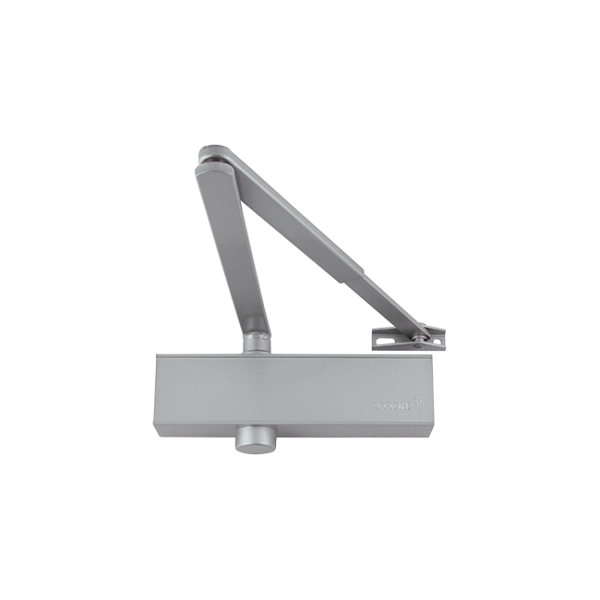

ARRONE OVERHEAD DOOR CLOSER ADJUSTABLE POWER SIZE 2-4 SILVER ENAMEL COVER AND MATCHING ARM ADJUSTABLE CLOSING AND LATCHING SPEED C/W BACKCHECK
SKU: HOP-AR8200-SE
For Prices / Qty Rates
Contact Our Sales Team Now
Click to Phone
Click to Email
- POWER SIZE: 2 TO 4 ADJUSTABLE BY TEMPLATE | FUNCTION: CLOSING, LATCHING | COVER: SLIDE COVER | MAXIMUM DOOR WIDTH: 1,100 MM (FIG 1 AND FIG 61), 950 MM (FIG 6) | MAXIMUM DOOR WEIGHT: 80 KG (FIG 1 AND FIG 61), 60 KG (FIG 6 ) | ARM APPLICATION: FIG 1, FIG 6 AND FIG 61 FIXING POSITIONS | SUCCESSFULLY TYPE TESTED FOR CONFORMITY TO ALL THE REQUIREMENTS OF BS EN 1154:1997 | DOOR MOUNT PULL (FIG 1), TRANSOM MOUNT PUSH (FIG 61): 3 | 8 | 4/2 | 1* | 1 | 3 | DOOR MOUNT PUSH (FIG 6): 3 | 8 | 3 | 1* | 1 | 3 | INCLUDED IN A SUCCESSFUL FIRE TEST TO BS EN 1634 PART 1. ASSESSED FOR USE ON 30, 60 AND 120 MINUTES TIMBER FIRE DOORS. | CE MARKED: AD0118 | CERTIFIRE APPROVED: CF295; DOP: HUK0020
| Brand | HOPPE |
|---|---|
| Manufacturer Ref: | 87106856 |
| Manufacturer Guarantee: | 5 YEAR |
| Material: | Cast Aluminium |
| Finish | Polished Stainless Steel |
| Dimensions: | 207MM X 55MM X 38.5MM |
| Resistance: | Slight corrosion resistance |
| Boxed Quantity (Pair): | 1 |
| Outer Carton Quantity: | 8 |
