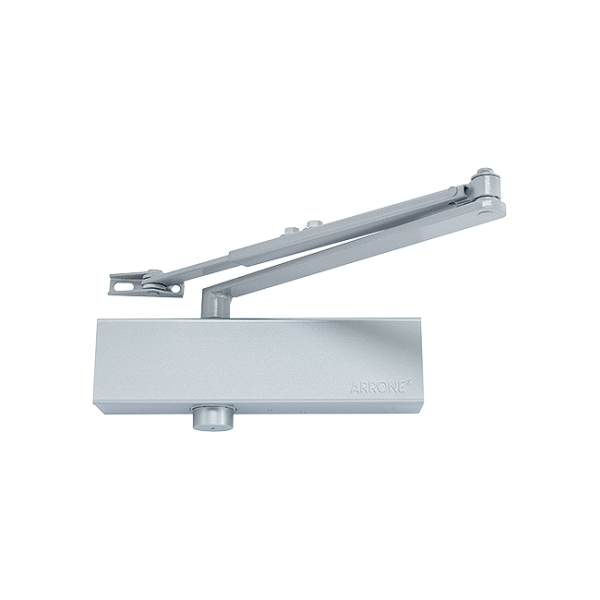

ARRONE OVERHEAD DOORCLOSER ADJUSTABLE POWER SIZE 2-5 SILVER ENAMEL COVER AND MATCHING ARM ADJUSTABLE CLOSING AND LATCHING SPEED
SKU: HOP-AR5500-L-SE/SE
For Prices / Qty Rates
Contact Our Sales Team Now
Click to Phone
Click to Email
- POWER SIZE: 2 TO 5 ADJUSTABLE BY SPRING TENSION | FUNCTION: CLOSING SPEED, LATCHING SPEED, BACK CHECK | COVER: SLIDE COVER | ARM APPLICATION: FIG 1 AND FIG 6 FIXING POSITIONS | MAXIMUM DOOR WIDTH: 1250 MM (FIG 1), 1100 MM (FIG 6) | MAXIMUM DOOR WEIGHT: 100 KG (FIG 1), 80 KG (FIG 6) | TESTING: BS EN 1154:1997 | DOOR MOUNT PULL (FIG 1): 3 | 8 | 5/2 | 1* | 1 | 3 | DOOR MOUNT PUSH (FIG 6): 4 | 8 | 4/2 | 1* | 1 | 3 | INCLUDED IN A SUCCESSFUL FIRE TEST TO BS EN 1634 PART 1. ASSESSED FOR USE ON UP TO 240 MINUTE STEEL UN-INSULATED FIRE DOORS. | CE MARKED: AD5472, UKCA MARKED: AD7693
| Brand | HOPPE |
|---|---|
| Manufacturer Ref: | AR5500-L-SE/SE |
| Manufacturer Guarantee: | 5 YEAR |
| Material: | Cast Aluminium |
| Finish | Polished Stainless Steel |
| Dimensions: | 236MM X 63MM X 46MM |
| Resistance: | Slight corrosion resistance |
| Boxed Quantity (Pair): | 1 |
| Outer Carton Quantity: | 6 |
