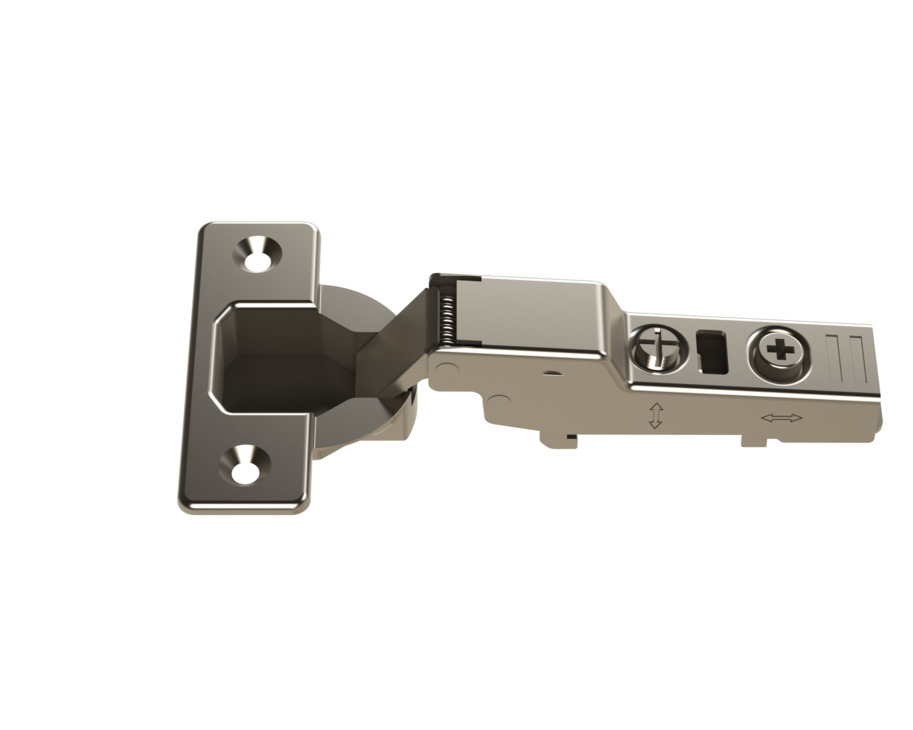

CONCEALED CUP HINGE - 110° INTEGRATED SOFT CLOSE - HALF OVERLAY MOUNTING WITH STANDARD DEPTH ADJUSTMENT
SKU: HAF-31104001
For Prices / Qty Rates
Contact Our Sales Team Now
Click to Phone
Click to Email
- SIDE ADJUSTMENT + 3 MM HEIGHT ADJUSTMENT + 2 MM (VIA MOUNTING PLATE) DEPTH ADJUSTMENT
- 35MM CUP
- 110 DEGREE OPENING ANGLE
- INTEGRATED SOFT CLOSE MECHANISM
- HALF OVERLAY
| Brand | Hafele |
|---|---|
| Manufacturer Ref: | 31104001 |
| Manufacturer Guarantee: | 25 YEARS |
| Material: | Steel |
| Finish | Polished Stainless Steel |
| Dimensions: | 73.5x36 |
| Resistance: | No corrosion resistance |
| Boxed Quantity (Pair): | 1 EACH |
| Outer Carton Quantity: | 50 |
