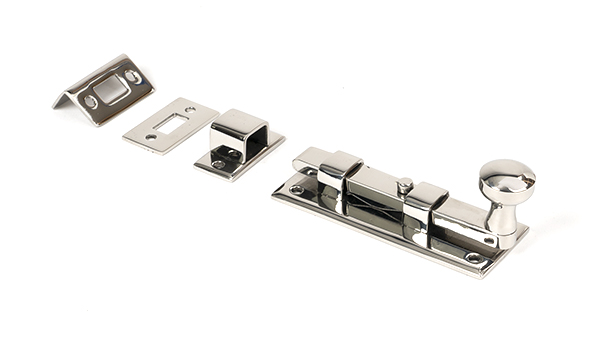

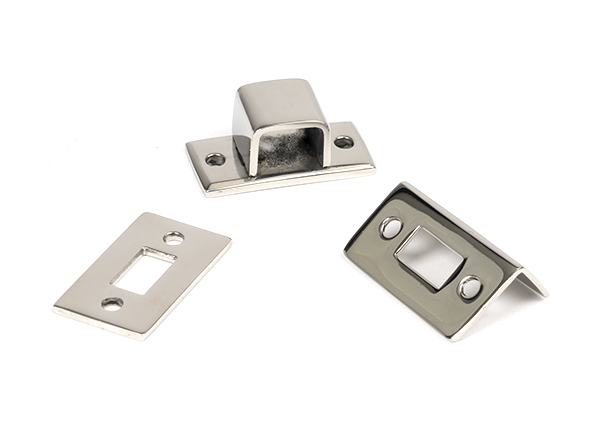

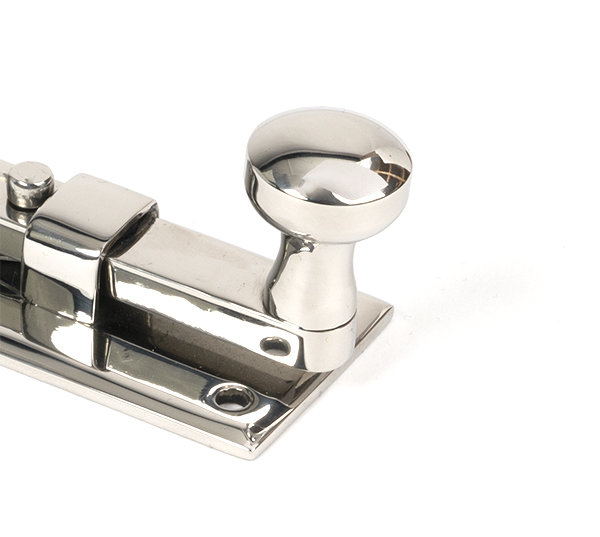

A multi purpose bolt which can be used on windows or doors and in other applications due to a variety of keeps supplied with the product. Supplied with matching SS wood screws. Can be used horizontally & vertically due to the strong spring mechanism incorporated into the bolts. Fixing Plate: 91mm x 36mm x 3mm Receiver Plate: 36mm x 20mm x 1.5mm Receiver Bridge: 36mm x 18mm x 3mm (Height: 14mm) Angled Keep: 36mm x 20mm x 1.5mm (Depth: 10mm) Throw: 15mm
